Fleet # –
Year – 2022
Make – Hyundai
Model – #HL940A

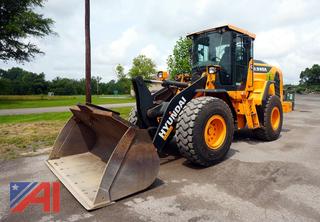

Body Style – High Lift Wheel Loader
Serial Number – HHKHWL40LL0000343
Odometer Numbers –
Hours – 582
Engine Make/Model – Cummins B6.7c Tier IV
Cyl – 6
Fuel Type – Diesel
Transmission Name – 4-Speed
Transmission Type – Hydrostatic
Single Axle/Dual Axle – Single Axle Single Wheel
Tire Size/Type – 20.5R25
Tire Condition – Good
Plow Size –
Dump Box Size –
Drivetrain – 4WD
GVWR – Operating weight is 30,420 lbs.
Does the unit operate? – Yes
Does the vehicle start? – Yes
Are keys available? – Yes
Ownership Information – Transferable Registration
Mechanical Condition – Fair
Mechanical Notes – Showing two codes, (1) Code is the hydraulic oil temperature circuit (HCESPN:101 FMI:3), The second code other one is the fuel level circuit fuel gauge (HCESPN:301 FMI:3).
NOTE: Regarding the codes feel free to call the pros over at George & Swede, contact Greg Newel at (585) 584-3425 ext. 1009 with questions.
Body Condition – Good
Body Notes – View images.
Interior Condition – Good
Misc Info – The video tab has a short clip of this loader in operation, and is being sold due to normal rotation of equipment.
The following general information is web-sourced and may contain variances from the subject unit:
The 2022 Hyundai HL940A High Lift Wheel Loader is a highly productive, mid-sized premium machine engineered for optimal material handling, loading, and industrial site support. This specific setup—configured with an extended high-lift boom, Z-Bar linkage, and a Volvo-style hydraulic coupler—balances aggressive digging forces with high-reaching material dump capabilities.
- Engine Model: Powered by a Cummins B6.7 engine delivering 156 net horsepower at 2,200 rpm.
- Peak Torque: Generates 550 lb-ft of torque at a low 1,300 rpm for maximum responsiveness under heavy loads.
- Emissions Tier: Features an advanced EPA Tier 4 Final / Stage V compliant package utilizing DOC, DPF, and SCR technology.
- Fuel Efficiency: Incorporates an Eco Gauge and Eco Pedal to sense economic operation and actively reduce daily fuel burn.
- Transmission Type: Equipped with a 4-speed fully automatic power shift countershaft transmission with soft-shift mapping.
- Torque Converter: Built with a 3-element, single-stage, single-phase converter to maximize fluid coupling efficiency.
- Travel Speeds: Capable of reaching up to 24.9 mph (40 km/h) forward and 16.4 mph (26.4 km/h) in reverse.
- Axle Configuration: Four-wheel-drive layout with a rigid front axle and an oscillating rear axle to maximize stability and wheel traction on uneven ground.
- High-Lift XT Boom: Provides extended hinge-pin height over standard configurations, maximizing dump clearance when loading high-sided trucks or hoppers.
- Z-Bar Linkage: Traditional mechanical linkage geometry optimized for extreme breakout forces and aggressive bucket digging.
- Attachment System: Custom-fitted with a Volvo Style quick coupler complete with dedicated auxiliary hydraulic coupler piping for rapid, cab-controlled attachment swaps.
- Material Handler: Paired with a 3-Yard (2.3 m³) bucket featuring a bolt-on reversible cutting edge to protect underlying bucket steel.
- Load-Sensing Hydraulics: Run via a variable displacement piston pump driving 39.4 GPM at 4,061 PSI, resulting in crisp, parallel control and rapid boom cycle times.
- Tire Package: Fitted with premium 20.5 R25 radial tires, which supply an exceptional footprint, heavy load carrying capacity, and long service life.
- Operating Weight: Roughly 30,560 lbs (13,860 kg) when outfitted in the High-Lift (XT) geometry.
- Maneuverability: Utilizes center-point frame articulation supporting a tight 40-degree steering angle in both directions.
- Smart Cabin: Fully enclosed ROPS/FOPS certified cab equipped with an 8-inch touchscreen monitor, heated air-ride seat, and automatic climate control.
- Onboard Weighing System: Includes an integrated payload scale system directly on the main display to track loaded tonnages in real-time.
- Remote Management: Built native with Hyundai’s cellular-based Hi-Mate remote monitoring system to track machine location, fault codes, and fuel metrics remotely.
