Fleet # –
Year – 2016
Make – Ram
Model – 5500
Body Style – Dump & Plow Truck
VIN/SN – 3C7WRNBL0GG373603
Odometer Numbers – 34120
Hours –
Engine Make/Model – Cummins Turbo 6.7L 325 hp and 750 lb-ft of torque right down at a low 1,500 RPM
Cyl – 6
Fuel Type – Diesel
Transmission Name – 6-speed
Transmission Type – Automatic
Single Axle/Dual Axle – Single Axle Dual Wheel
Tire Size/Type – 225/70R19.5
Tire Condition – Fair
Plow Size – Fisher 9
Dump Box Size – Rugby 11
Drivetrain – 4WD
GVWR – 18,000Lbs
Does the unit operate? – Yes
Does the vehicle start? – Yes
Are keys available? – Yes
Ownership Information – Title
Mechanical Condition – Good
Mechanical Notes – Well maintained.
Body Condition – Poor
Body Notes – The cab is fair, dump body poor with significant rust and rot, view images. Has been up fitted with a hydraulic system which powers the dump body and is plumed to the rears for a spreader (no spreader included)
Interior Condition – Fair
Misc Info –
The following general information is web-sourced and may contain variances from the subject unit:

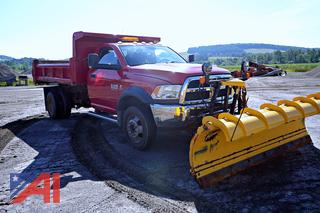

2016 Ram 5500 Regular Cab 4WD is a heavy-duty commercial powerhouse configured as a premium Class 5 vocational severe-duty setup. Equipped with high-end snow removal hardware and a massive dump system, it is custom-built for brutal winter operations and heavy-site hauling.
1. The Chassis & Cab Layout
- Classification: This is a Class 5 Chassis Cab truck with a gross vehicle weight rating (GVWR) of 18,000 lbs.
- Drivetrain: A true 4-Wheel Drive (4×4) configuration featuring dual rear wheels (DRW) for ultimate traction pushing snow or hauling heavy bulk materials.
- Cab Configuration: Regular cab layout prioritizing maximum body length behind the cab while retaining agile maneuvering for tight spaces, parking lots, and narrow streets.
2. Engine & Transmission
- Engine: The legendary 6.7L Cummins Turbo Diesel Inline-6. For the commercial 4500/5500 chassis cabs, Cummins detunes the horsepower slightly compared to the consumer 3500 series in order to meet strict commercial durability cycles. It generates 325 horsepower and 750 lb-ft of torque right down at a low 1,500 RPM. It includes a factory smart diesel exhaust brake to drastically minimize brake wear on steep downgrades.
- Transmission: A heavy-duty Aisin AS69RC 6-speed automatic transmission. The "stickshift" toggle refers to the +/- Electronic Range Select (ERS) on the column or stalk shifter, allowing the operator to manually hold, downshift, or limit the highest gear to prevent hunting when dragging a loaded body or plowing heavy slush.
3. Rugby 11' Steel Dump Body
- Capacity: Typically rated for 3 to 4 cubic yards of capacity.
- Construction: Built by Rugby Manufacturing, the 11-foot length is paired with a heavy-duty subframe and a double-acting hoist system. The floor is composed of robust 10-gauge steel, supported by a rigid structural dirt-shedding top rail.
- Tailgate Features: Employs Rugby's patented EZ-LATCH upper mechanism, allowing quick release and swift slam-lock operation when dumping material.
4. Fisher 9' MC Storm Guard Straight Blade Plow
- Blade Class: The MC (Municipal/Commercial) Series is the largest, heaviest-duty straight blade built by Fisher Plows.
- Specs: Measures 9 feet wide, stands a massive 34 inches high, and is reinforced with 8 vertical structural ribs alongside an 11-gauge steel faceplate.
- Trip Edge Design: Features a unique Trip-Edge system where only the bottom base edge trips when contacting hidden curbs or manhole covers. The moldboard stays completely upright, ensuring you never lose your load of pushed snow.
- Mounting: Uses the Minute Mount 2 system for lightning-fast drive-in attachment and release.
- Finish: Coated in Fisher’s trademark Storm Guard baked-on powder coat for extreme salt and rust prevention.
5. In-Cab Controls & Spreader Sub-System
- Parker Spread Master PSM1000C controller: The Controller: Installed inside the cab is the Parker Spread Master PSM1000C controller. Manufactured by Parker Hannifin, this is a high-grade, open-loop proportional system.
- Operation: It relies on dial potentiometers providing 10 distinct detents to precisely regulate Feed Rate (Auger/Conveyor) and Spinner Speed independently. It includes a backlit face for night operation and a "Blast" button that forces maximum output for 5 seconds when treating icy intersections.
- PSM1000C: Current State: While the truck does not currently have a salt spreader mounted to the dump body, the presence of the PSM1000C means the costly in-cab wiring harness, solid-state electronics, and corresponding external hydraulic control manifold are already fully integrated. Adding a compatible V-box or tailgate sander will be mostly plug-and-play.
6. Comfort & Convenience Features
Though configured as a rugged workhorse, the cab is highly spec'd for operator retention during long, grueling shifts:
- Power windows, locks, and power-adjustable heated side mirrors.
- Cruise control for highway transits.
- Climate control system (Heat & A/C).
- Upgraded audio infotainment system supporting modern device connectivity.
